SINJI Energy Storage brand vanadium redox flow batteries (VRFB) focus on energy storage for new energy applications, providing customized systems ranging from 10kW to 50kW and 50MW to 200MW. Project case studies can be viewed on the official website: https://www.sinjienergy.com/application.html.

Availability:

Quantity:



Inquire Add to Basket

Product Description

SINJI brand vanadium redox flow batteries (VRFB) focus on energy storage for new energy applications, providing customized systems ranging from 10kW to 50kW and 50MW to 200MW. Project case studies can be viewed on the official website: https://www.sinjienergy.com/application.html.

Product Schema

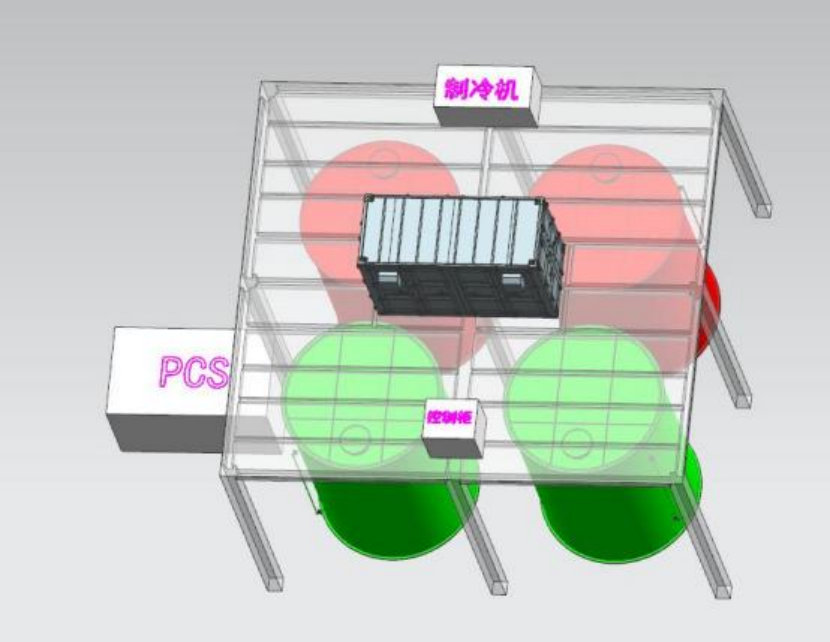

系统尺寸（mm） System size (mm)	功率单元 Power unit	3800mm(L)* 1600mm(W)2590mm(H)1(Quantity）
	容量单元（占地） Capacity unit (acreage)	8000mm(L)7500mm(W)3400mm(H)
	容量单元 Capacity unit (steel structure)	16000mm4000mm3800mm (1）
	liquid storage tank	Quantity4（Φ3300*3200mm）
	双向逆变器PCS Bidirectional inverter PCS	1406mm1976mm650mm*1（Quantity）

System parameters:

名称 Name	设计指标 Design indicators	备注 Remarks
1.1	电堆参数 Parameters of power stacks
单电堆额定输出功率 Rated output power of single stack	≥128kW
单电堆电压范围 Single Stack Voltage Range	200-320V
单电堆电流 Single Stack Current	640A
单电堆能量效率 Energy efficiency of single stack	≥80%
1.2	模块参数
模块额定输出功率 Module Rated Output Power	≥0.5MW	由4个单堆串联组成 Composed of 4 single stacks connected in series
模块电压范围 Module Voltage Range	800-1280V
模块电流 Module Current	1280A
1.3	储能系统 Energy storage systems
系统额定输出功率 System Rated Output Power	≥0.5MW
系统电压范围 System voltage range	800-1280V
系统电流 System current	1280A
交流侧电压 AC Side Voltage	550V
交流频率 AC frequency	50/60Hz
放电容量 Discharge capacity	≥2MWh
系统能量效率 System energy efficiency	≥70% (交流端)
短时过载 Short-term overload	1.1倍额定功率下运行 10分钟以上
电堆设计循环次数 Stack design cycle time	≥20000次	质保期一年(验收合格后开始) Warranty period of one year (starting after acceptance)
密封性能保证 Sealing performance guarantee	电堆对外无泄漏，电堆内部无内漏 No external leakage from the stack, no internal leakage from the stack.
运行温度 Operating temperature	0℃~40℃/-30℃~60℃
额定电流密度 Rated current density	≥160mA/cm2
验收标准 Acceptance Criteria	符合国家、行业要求 Compliance with national and industry requirements
