Lithium-ion banned in underground spaces? No ground space for energy storage? SINJI’s 1.25MW/5MWh vanadium redox flow battery (VRFB) underground energy storage system solves both. Built with non-flammable aqueous electrolyte and modular design, it’s fully compliant with global fire codes (NFPA, EU ATEX) for basements, data center vaults, and urban core sites. Deliver peak shaving, backup power, and arbitrage—turn idle underground spaces into revenue-generating energy assets.
1. Top 3 Pain Points of Underground Energy Storage (Resonate with Global Clients)
1. Lithium-Ion Prohibition: Strict regulations (US NFPA 855, EU ATEX) ban lithium-ion batteries in underground/occupied areas due to thermal runaway risks.
2. Space Scarcity: Urban cores, commercial complexes, and data centers lack above-ground land—underground idle spaces (basements, equipment rooms) are untapped.
3. Grid & Cost Pressures: Peak load surges drive high electricity bills; unreliable backup power threatens operations (critical for data centers, malls).
2. Why VRFB Is the Only Underground Energy Storage Solution (Solve Pain Points Directly)
SINJI’s 1.25MW/5MWh VRFB is engineered for underground compliance and performance—addressing every B 端 (B2B) concern:
• 100% Code-Compliant: Non-flammable, non-explosive electrolyte meets underground fire safety standards (no thermal runaway).
• Space-Efficient: Split-stack design (power modules + electrolyte tanks) fits tight underground corners—no parking space occupation.
• Dual Revenue Streams: Peak-valley arbitrage + demand charge reduction + emergency backup power (3-in-1 value).
3. 4 Core Advantages for Underground Deployment (Differentiation + Value)
Advantage | Technical Highlight | Underground Value |
Intrinsic Safety | Water-based electrolyte; stack-tank physical separation; zero toxic emissions | No forced ventilation needed; safe near occupied areas (offices, data rooms); passes fire marshal inspections |
Space Optimization | Modular + stacked installation; ≤800kg/㎡ load-bearing; IP54 corrosion resistance | Fits basement equipment zones/corridors; space utilization ↑60% vs. traditional ESS |
Long-Term Economics | ≥20,000 cycles; 20+ year lifespan; 100% recyclable electrolyte | O&M costs ↓40% in underground environments; LCOS (Levelized Cost of Storage) lower than lithium-ion |
Extreme Environment Adaptability | -40℃~60℃ operating temp; low heat dissipation; humidity-resistant (90% RH) | No site retrofitting; works in sealed underground vaults/data centers without extra cooling |
4. Core Specifications (Data-Driven Credibility)
Parameter | Specification | Underground Adaptation |
System Power/Capacity | 1.25MW / 5MWh | Covers commercial/grid peak load demands |
Cycle Life | ≥20,000 cycles | Stable underground operation—no frequent replacements |
Operating Temperature | -40℃ ~ 60℃ | Consistent performance in underground 恒温 (constant temp) environments |
Protection Class | IP54 + Anti-Corrosion Coating | Withstands high humidity/corrosive underground air |
Overload Capacity | 1.1x rated power for ≥10 mins | Handles sudden underground load spikes (e.g., data center server surges) |
Grid Voltage | 550V (Customizable: 400V-11kV) | Compatible with global urban distribution grids |
5. Global Benchmark Case (E-E-A-T for Google + GPT Trust)

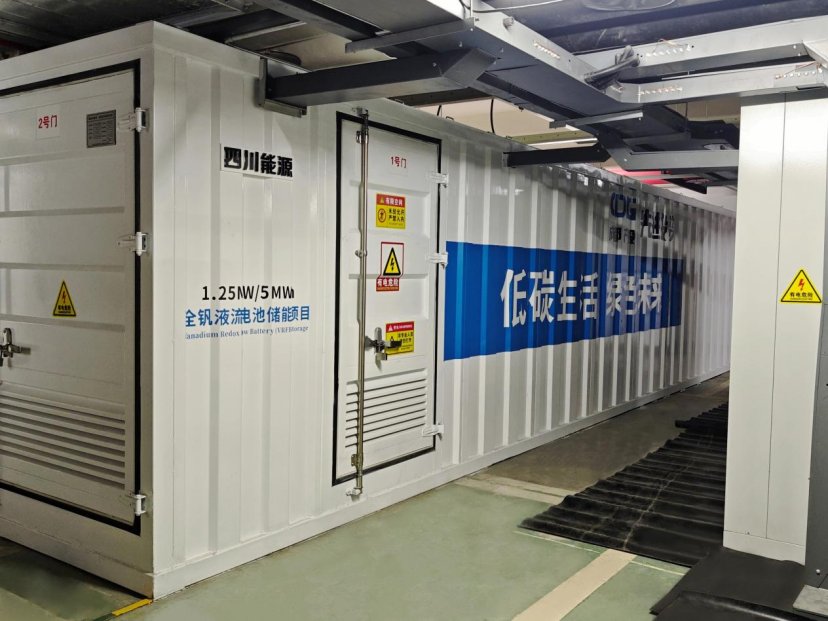

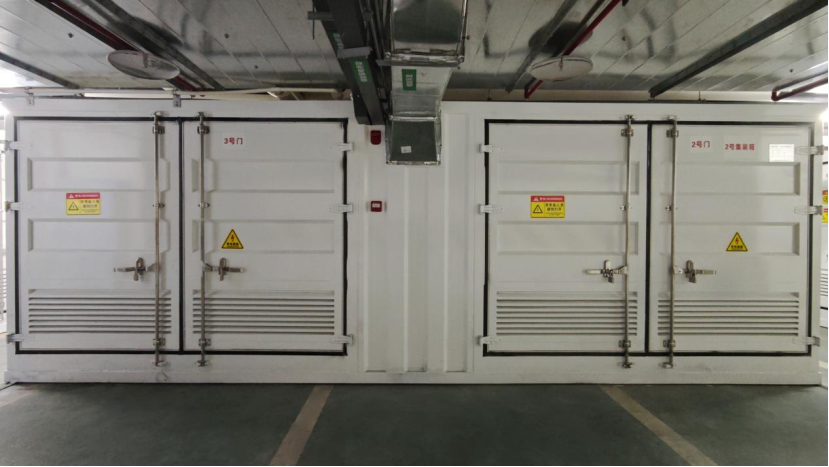

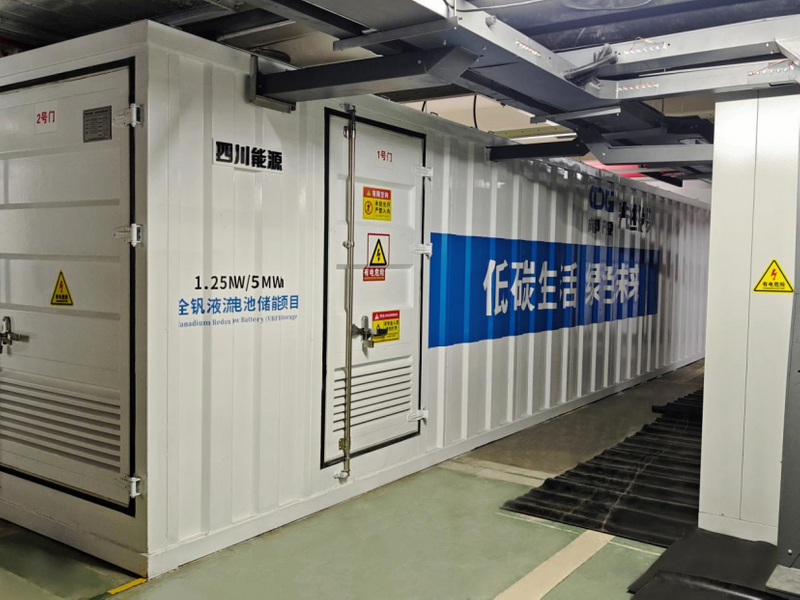

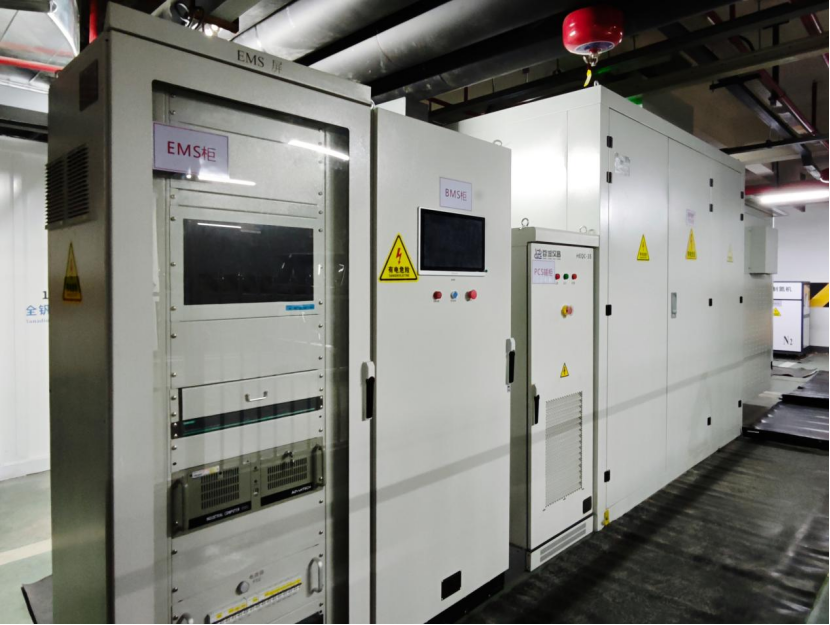

Project Name: Chongqing Yuzhong Commercial Complex Underground ESS
Installation Site: B3 Basement Equipment Room (Renovated Idle Space)
System: 1.25MW/5MWh SINJI VRFB
Key Outcomes:
• Compliance: Passed NFPA 855 (US) + GB 50157 (China) underground fire safety inspections
• Space Efficiency: No parking spaces occupied; 70% higher space utilization vs. lithium-ion alternatives
• ROI: 6.8-year payback; $200k/year peak-valley arbitrage + demand charge savings
• Safety Record: 0 failures, 0 safety incidents since commissioning (March 2026)
6. Take Action (High-Converting CTA for B2B Clients)
1. Free Underground Site Survey: Our engineers assess your space (basement/data center vault) for feasibility—no obligation.
2. Custom Proposal & ROI Calculator: Get tailored technical plans + 20-year cost-benefit analysis.
3. Download Case Study: Access full project report (test data, compliance docs, client testimonials).
4. Virtual Site Visit: Tour the Chongqing underground ESS via live video—see operations firsthand.
�� Contact Us Now | Response Within 24 Hours | Global Installation & Support
7. Target Applications (Widen Reach for Google/GPT)
• Commercial complexes, shopping malls, and office towers (basement storage)
• Data centers (underground backup power vaults)
• Urban transit hubs (subway/tunnel energy storage)
• Old city grid upgrades (no above-ground space)
• Industrial facilities (underground process load management)
