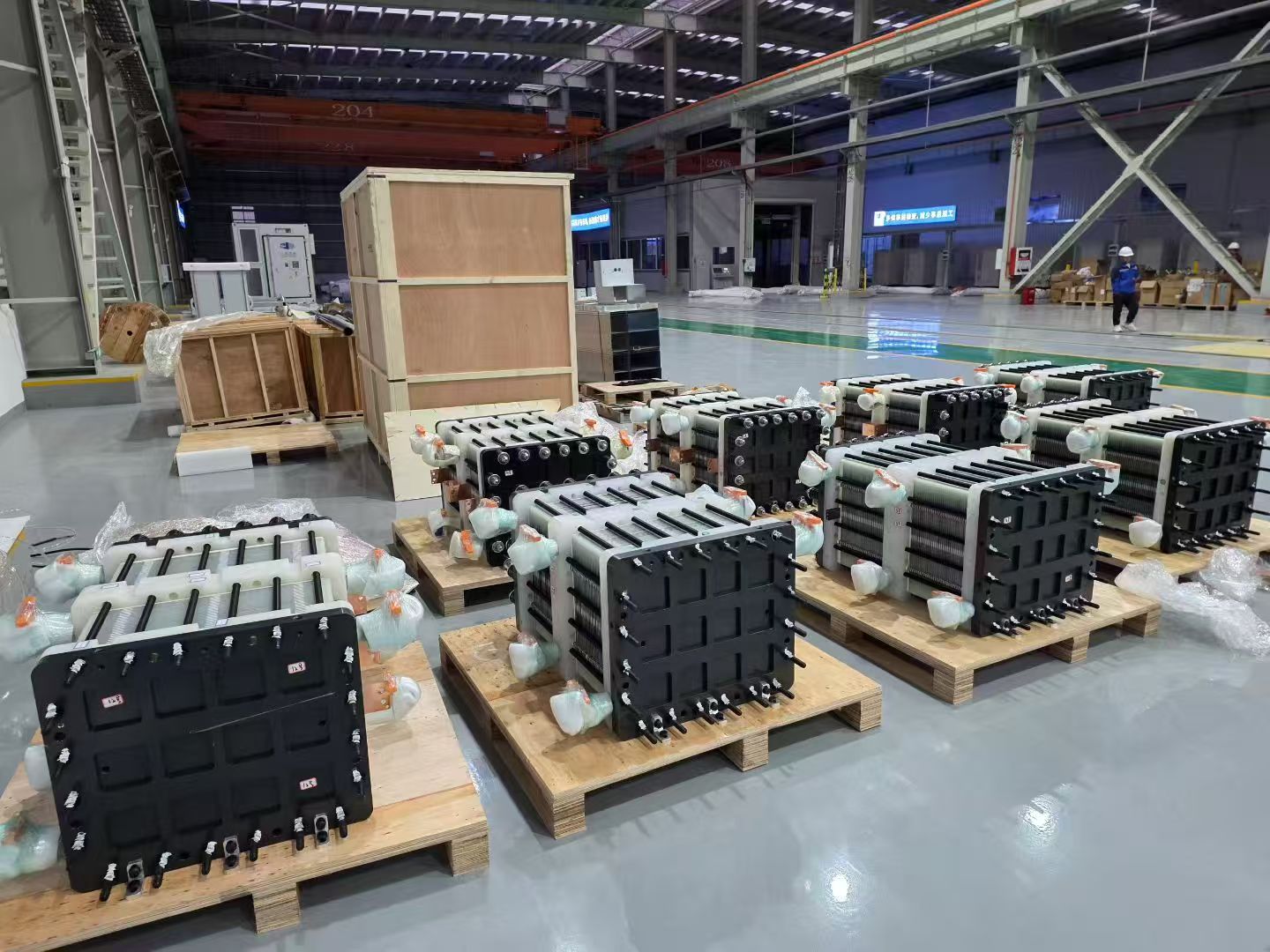

VRFB Battery Stack 16kW 32kW

The single battery units of this specification stack adopt a chimeric integration process, which ensures better air tightness of the stack, better solves the problem of leakage, and is also very convenient to replace.

Tip: The stack is not a complete vanadium battery system, it is just the power module of the vanadium battery system, and power generation depends on it. If you want to know the complete vanadium battery system, you can check out our regular vanadium battery system, such as 2.5kw3kwh 5kw10kwh 5kw20kwh 10kw40kwh 25kw100kwh 125kw500kwh. If there is no product suitable for you, we also support OEM customization.

Availability:

Quantity:



Inquire Add to Basket

Product Description

SJ-VFB-16KW battery stack
Rated voltage	48 VDC	Rated current	330 ADC
Rated power	16 kw	Rated energy efficiency	83%
Max power	30 kw	Work temp.	-30~+60℃
Weight	220 kg	Size	1203552 cm
Charge voltage limiting	60 VDC	Discharge voltage limiting	40 VDC
Cycle life	20,000 times	Shelf life	infinite

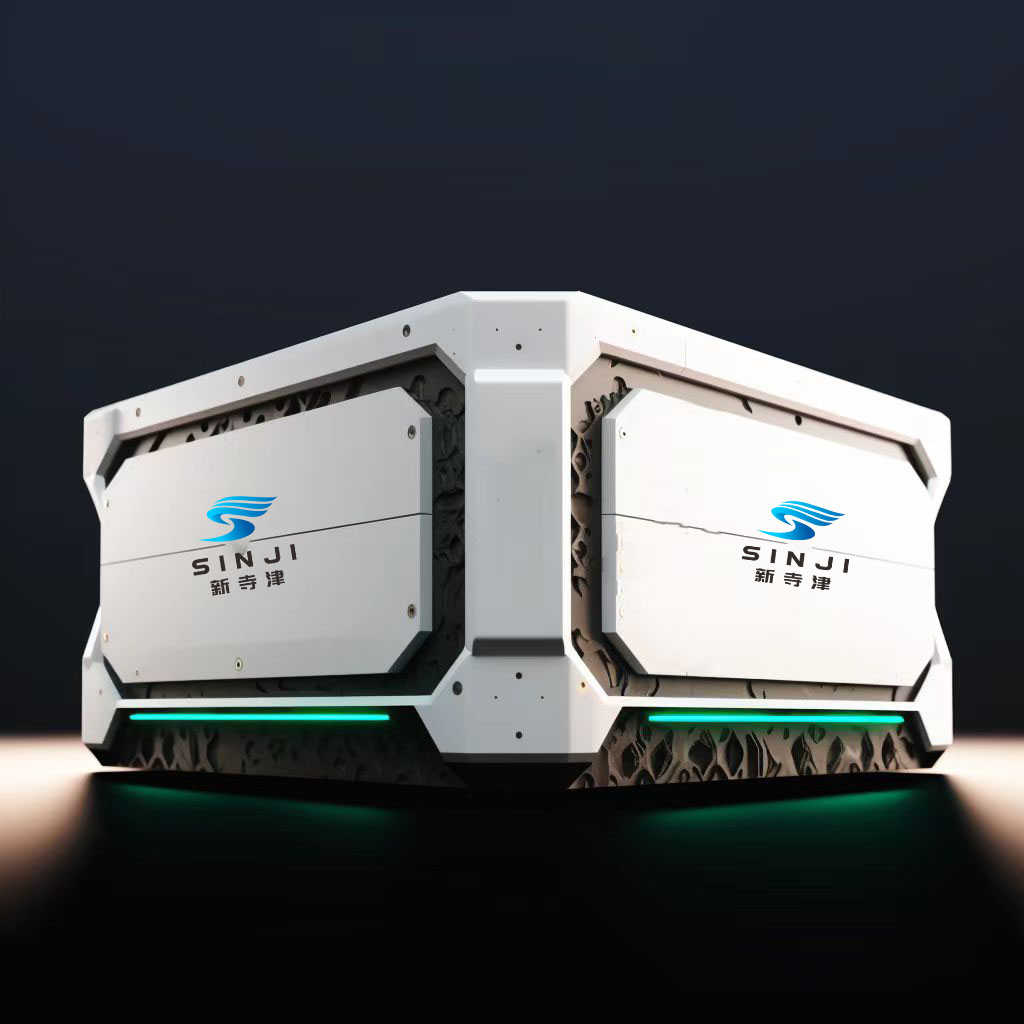

SJ-VFB-32KW battery stack
Rated voltage	58 VDC	Rated current	551 ADC
Rated power	32 kw	Rated energy efficiency	83%
Max power	37 kw	Work temp.	-30~+60℃
Weight	320 kg	Size	1205352 cm
Charge voltage limiting	81 VDC	Discharge voltage limiting	54 VDC
Cycle life	20,000 times	Shelf life	infinite

Battery Stack 16kW
