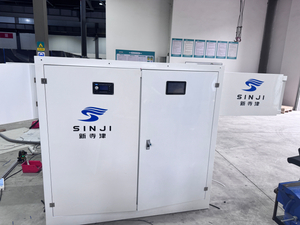

2.5kw5kwh VRFB SINJI Flow battery for home
2.5kw5kwh VRFB SINJI Flow battery for home 2.5kw5kwh VRFB SINJI Flow battery for home
2.5kw5kwh VRFB SINJI Flow battery for home 2.5kw5kwh VRFB SINJI Flow battery for home

loading

2.5kw5kwh VRFB SINJI Flow battery for home

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
sharethis sharing button
Availability:
Quantity:
Inquire Add to Basket
ParameterSpecification
Model2.5kw/5kwh
Rated Voltage24VDC
Rated Current105ADC
Rated Energy Efficiency>75%
Maximum Current130ADC
Rated Power2.5kW
Rated Duration*2 Hours
Rated Energy*5kWh
Rated Capacity5kWh
Battery Weight1325 KGS
Energy Storage Cabinet Size1.5*1.5*1.7 m
Electrolyte Weight325 KGS
Electrolyte Volume0.25 M3
Electrolyte Concentration1.5MOL/L
Operating Temperature Range-30 - 60°C
Charging Limit Voltage19-30 VDC
Discharge Limit Voltage19-30 VDC
Cycle Life20000 cycle
Storage Life20 years
Protection LevelIP44
AC Rated Voltage220 V


Previous:
Next:
Vanadium Battery Energy Storage System VRFB College Test Equipment 2.5kW3kWh VRFB College Test Equipment 2.5kW3kWh 2.5kW5kWh

Related Products

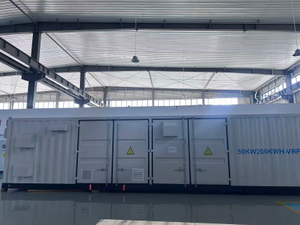

Vanadium Battery Energy Storage System 50KW200KWh,Vanadium Battery Energy Storage System VRFB
